New Data Acquisition Products & News

DATEL High Temperature Dual Op Amp

The AM-606HT series are dual Operational Amplifiers that combine high speed performance with the advantages of precision in a single package. This series of Amplifiers with guaranteed performance up to +200°C is the best choice for down-hole, geothermal exploration, undersea cabling, hot engines, aerospace and harsh environmental applications.

  • AM-606HT: DATEL Series are Dual Operational AmplifiersAugust 2016

    • Extended temperature -55 to +200°C
    • Unity-gain stable
    • Wide bandwidth: 28MHz
    • High Slew rate: 250V/µs
    • Drives capacitive loads
    • Low voltage operation: ±5V to ±15V
    • Low supply current: <10mA Qualified and Characterized for more than 1,000-hour operating life 8-pin SMT (GHT) or DIP (MHT) hermetic sealed ceramic package


  • Read more about AM-606HT Series are Dual Operational Amplifiers

  • Data Sheet: AM-606HT: DATEL Series are Dual Operational Amplifiers

  • Request Information: AM-606HT: DATEL Series are Dual Operational Amplifiers

DATEL, 14-bit 125MHz Digital-to-Analog Converter

The DAC-1412 is a 14-bit D/A converter that offers up to 125MHz conversion rate from a segmented current source topology that is built on an advanced CMOS process and delivers a low glitch energy output from 2mA to 20mA. Housed in a small 28-pin plastic TSSOP package, it is the best choice for all military, airborne, and aerospace applications that can utilize a low cost Commercial-Off-the Shelf (COTS) component such as the DAC-1412.

  • DATEL, 14-bit 125MHz Digital-to-Analog ConverterJuly 2016

    • 14-bit, resolution
    • 125MHz Samples per second
    • 35ns settling time to ±0.05%
    • Internal +1.2V temperature compensated bandgap reference
    • External reference option
    • 28-pin plastic TSSOP package (SE, SM models)
    • Operates from single +3.0 to +5.0V supply
    • Low power, 76mW (+3V supply), 150mW (5V supply)
    • 100% testing over temperature


  • Read more about DAC-1412: 14-bit 125MHz Digital-to-Analog Converter

  • Data Sheet:  DAC-1412: DATEL, 14-bit 125MHz Digital-to-Analog Converter

  • Request Information: DAC-1412: 14-bit 125MHz Digital-to-Analog Converter

DATEL Analog Front End for CCD Imaging Applications

The ADCDS-1801 is an 18-bit, industry-leading, integrated solution for CCD Signal Processing. This series of analog front-end imaging converters are designed specifically for the very high-resolution imaging applications.

  • DATEL : ADCDS-1801 SeriesJune 23, 2016

    • Internal 18-bit resolution A/D DATEL ADCDS-1801 is an 18-bit, integrated solution for CCD Signal Processing
    • Internal correlated double sampler (CDS)
    • 1.250 Mega-Samples per second
    • Analog front-end programmable bandwidth
    • Low-profile 44-pin plastic SMT Quad-Pak
    • Extended temperature range -40°C to +125°C
    • 31µV RMS noise @ 1.25MPPS
    • Resistor programmable gain adjustment from 0dB to 15.5dB
    • User selectable digital output supply voltage range


  • Read more about ADCDS-1801 Analog Front End for CCD Imaging

  • Data Sheet:  ADCDS-1801 Analog Front End for CCD Imaging

  • Request Information: ADCDS-1801 Analog Front End for CCD Imaging

DATEL ADS-429, 8-Channels, Low Power Analog-to-Digital Converter

The ADS-429 is a 12-bit, 250kSPS multi-channel SAR Analog-to-Digital converter housed in a 16-pin plastic TSSOP package. It is the best choice for all military, airborne, and aerospace applications that can utilize a low cost Commercial Off The Shelf (COTS) component such as the ADS-429

  • DATEL : ADS-429 SeriesMay 24, 2016

    • 8 single-ended analog input channels
    • 250kHz Samples per second
    • Rail-to-rail analog inputs
    • Single supply from +2.7V to +5.25V
    • SPI compatible serial interface
    • 3mA of operating supply current
    • 9mW of power dissipation from +3 volts supply
    • 8µA supply current in power down mode
    • Small 16-pin plastic TSSOP package
    • 100% testing over temperature


  • Read more about ADS-429 Analog-to-Digital Converter

  • Data Sheet:  ADS-429, 8-Channels, Low Power Analog-to-Digital Converter

  • Request Information: ADS-429, 8-Channels, Low Power Analog-to-Digital Converter

DATEL LVR-7815 Positive Linear Voltage Regulator

The LVR-7815 is the first of a family of positive linear voltage regulators offered by DATEL that have guaranteed performance from -55 to +125°C. It is your best choice for all military, aerospace, harsh, and demanding applications.

  • DATEL : LVR-7815 SeriesJune 20, 2015

    • Hermetically sealed surface mount package
    • Impervious to humidity
    • Thermally optimized package
    • Built-in overload protection
    • Short circuit current limiting
    • 100% tested over the full military temp range
    • Compatible with DSCC/DLA 5962-88748
    • RoHS or non-RoHS versions available


  • Read more about LVR-7815 Positive Linear Voltage Regulator

  • Data Sheet:  LVR-7815 Positive Linear Voltage Regulator

  • Request Information: DATEL LVR-7815 Positive Linear Voltage Regulator

DATEL ADS-951 Analog to Digital Converter

The First 18-Bit, 1MHz ADC in the industry with performance from -55°C to +125°C, ideal for all precision, ruggedized, high reliability, and demanding applications.

  • DATEL : ADS-951 SeriesNovember 20, 2014

    • 18-bit resolution
    • 1 MHz sampling rate
    • Edge-triggered, no pipeline delays
    • Ideal for burst or multiplexed application
    • No missing code over the entire temperature range
    • Lowest Offset and Gain Drift in the market


  • Read more about ADS-951 Analog to Digital Converter

  • Data Sheet:  DATEL ADS-951 Analog To Digital Converter

  • Request Information: DATEL ADS-951 Analog To Digital Converter

RELIABLE VENDORS ARE CRITICAL TO THE BOTTOM LINE

A DATEL Case Study








DATEL ADS-1011 Analog to Digital Converter

Hermetically Sealed for Hi-Rel, Precision Applications


DATEL ADC-85 Analog to Digital Converter

A Reliable Choice for Precision Applications


DATEL DAC-88 Digital to Analog Converter

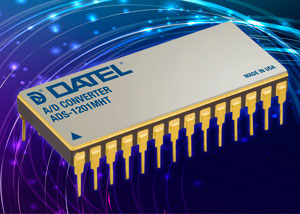

ADS-1201 : Analog-to-Digital Converter for High Temperature Applications


SHM-14: World's fastest stand-alone 14-bit sample-and-hold amplifier acquires in 35 ns to 0.003% accuracy


DAC-12100: Low cost, ultra-high speed 12-bit digital to analog converter suits high reliability military and aerospace applications


ADSQ-1410: DATEL Quad Sampling A/D converter combines low noise and excellent dynamic performance for a wide range of image processing applications

  • ADSQ-1410: DATEL Quad Sampling A/D converter combines low noise and excellent dynamic performance for a wide range of image processing applicationsJune 16, 2009

    • Functionally complete, quad 14-Bit, 10 MSPS A/D converter
    • 0.5 LSB RMS DC noise with no missing codes
    • Excellent dynamic performance with SNR of 80dB
    • Choice of SMT or TDIP through-hole packages


  • Read more about Quad Sampling A/D converter: ADSQ-1410

  • Data Sheet: Quad Sampling A/D converter: ADSQ-1410

  • Request Information: Quad Sampling A/D converter: ADSQ-1410

ADS-939 Sampling A/D Converter Delivers True 16-Bit Performance at 10MHz in a Fully Integrated Package

ADS-939 Sampling A/D Converter Delivers True 16-Bit Performance at 10MHz in a Fully Integrated PackageSmall, functionally complete design requires no external components and promotes high reliability
  • August 20, 2007

    • 16-bit resolution
    • 10MHz sampling rate
    • Functionally complete
    • No missing codes over full military temperature range
    • Edge-triggered
    • ±5V, ±12V or ±15V supplies, 3.0 Watts
    • Small, 40-pin, ceramic TDIP
    • 82dB SNR, -86dB THD
    • Ideal for both time and frequency-domain applications

  • Read more about 16-Bit Sampling A/D Converter: ADS-939

  • Data Sheet: 16-Bit Sampling A/D Converter: ADS-939

  • Request Information: 16-Bit Sampling A/D Converter: ADS-939

ADCDS-1603 Imaging Signal Processor Provides High-Performance Functionality, Simple Interface, for a Complete Solution

ADCDS-1603 Imaging Signal Processor Provides High-Performance Functionality, Simple Interface, for a Complete Solution 16-Bit, 3 megapixels/second imaging signal processor
  • October 10, 2006

    • 16-bit resolution
    • 3MPPS throughput rate (16-bits)
    • Functionally complete
    • Very low noise
    • Excellent signal-to-noise ratio (85db)
    • Edge triggered
    • Small, 40-pin, TDIP package
    • Low power, 500mW typical
    • Low cost
    • Programmable analog input bandwidth

  • Read more about Imaging Signal Processor: ADCDS-1603

  • Data Sheet: Imaging Signal Processor: ADCDS-1603

  • Request Information: Imaging Signal Processor: ADCDS-1603

Company News

IN MEMORIAM:

Nicholas George Tagaris Nicholas George Tagaris Founder and former President/CEO of DATEL, Inc. passed away on Sept. 24, 2015 at his home in Walpole, Mass. He was born on Oct. 1, 1935 in Greece and came to America after graduating high school to attend MIT's engineering program. He went on to start DATEL, Inc. in which he was at the helm as president/CEO for well over 40 years. In that time, the company grew to have subsidiaries in Tokyo, London, Paris, Munich and Shanghai as well as the headquarters based in Mansfield, Massachusetts. Mr. Targaris was a leader in the electronics industry and he will be missed by us at DATEL and many others.








DATEL ACQUISITION NOTICE

April 1, 2015
Mansfield, MA

DATEL management announced today the acquisition of the DATEL Business Unit from Murata Power Solutions. The business will operate as DATEL Incorporated, an employee-owned, US based corporation.

The entire management team as well as engineering and technical staff, marketing, sales, and production personnel will transition to DATEL Inc. Company headquarters and production facilities will remain at 11 Cabot Boulevard, Mansfield, MA.

DATEL was founded in 1974 and during its 40 plus year history has been owned by Intersil, G.E., C&D Technologies, and most recently by Murata Power Solutions. Through each of these acquisitions the DATEL Business Unit has continued to be a leader in the Data Acquisition and hybrid multi-chip markets providing products for military, medical, high-reliability, industrial, and scientific applications. Our committed staff of professionals has made the DATEL brand name recognized throughout the world for engineering excellence, quality products and unmatched customer support.

Operating as a private company, DATEL will be better positioned to serve its customers and emerging markets using existing, as well as new, sales channels.

Download Acquisition Notice.
